01 SHUTTER HOLDER 60MM
01 SHUTTER A 220/100 MM
01 SHUTTER B 280/160 MM
01 POWER SUPPLY

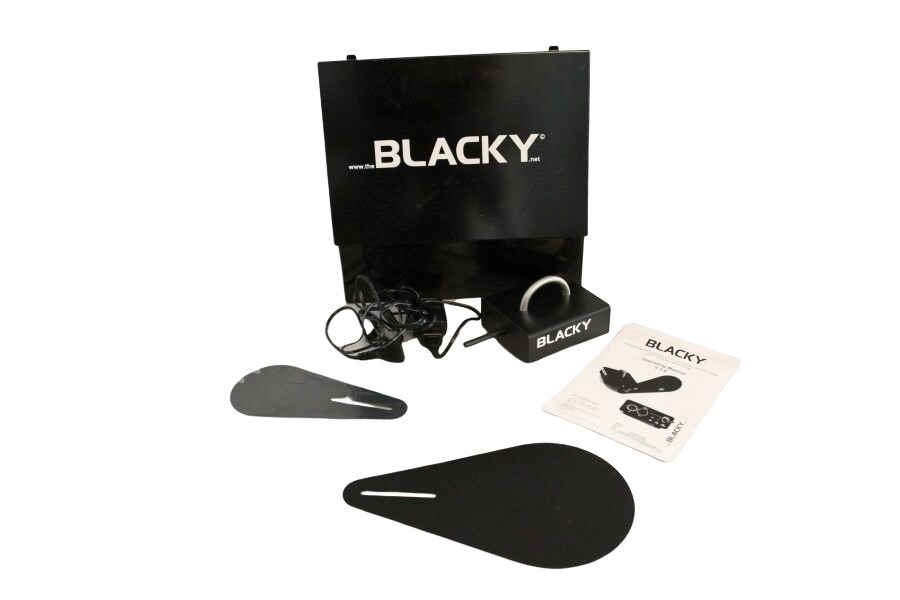

DMX SHUTTER G.A.D. BLACKY
BLACKY®, the professional projection shutter for theater, concert, stage and multimedia performance.
Nearly all video projectors still produce a grey spillover on the screen when it should really be black. BLACKY comes to the rescue. BLACKY is the mechanical DMX shutter to blackout unwanted projections.
- Apex Angles:: 60° / 90° / 135°/ 170°
- Shutter Reaction Time: 0,2 sec / 60 °
- Torque:: 35 N/cm min.
Shutter A: L= 220 mm, Ø100 mm
Shutter B: L= 280 mm, Ø160 mm
- Shutter Holder:
Standard: L= 60 mm / Extra long: L=110 mm
- Control: DMX512 / Remote control
- Connectors: XLR 5-pol male, XLR 5-pol female
- Power Supply: 110-230 V automatic, polarity safe. Power Supply Plug is fastened to device via a coupling nut
- Addressing: Pushbutton
