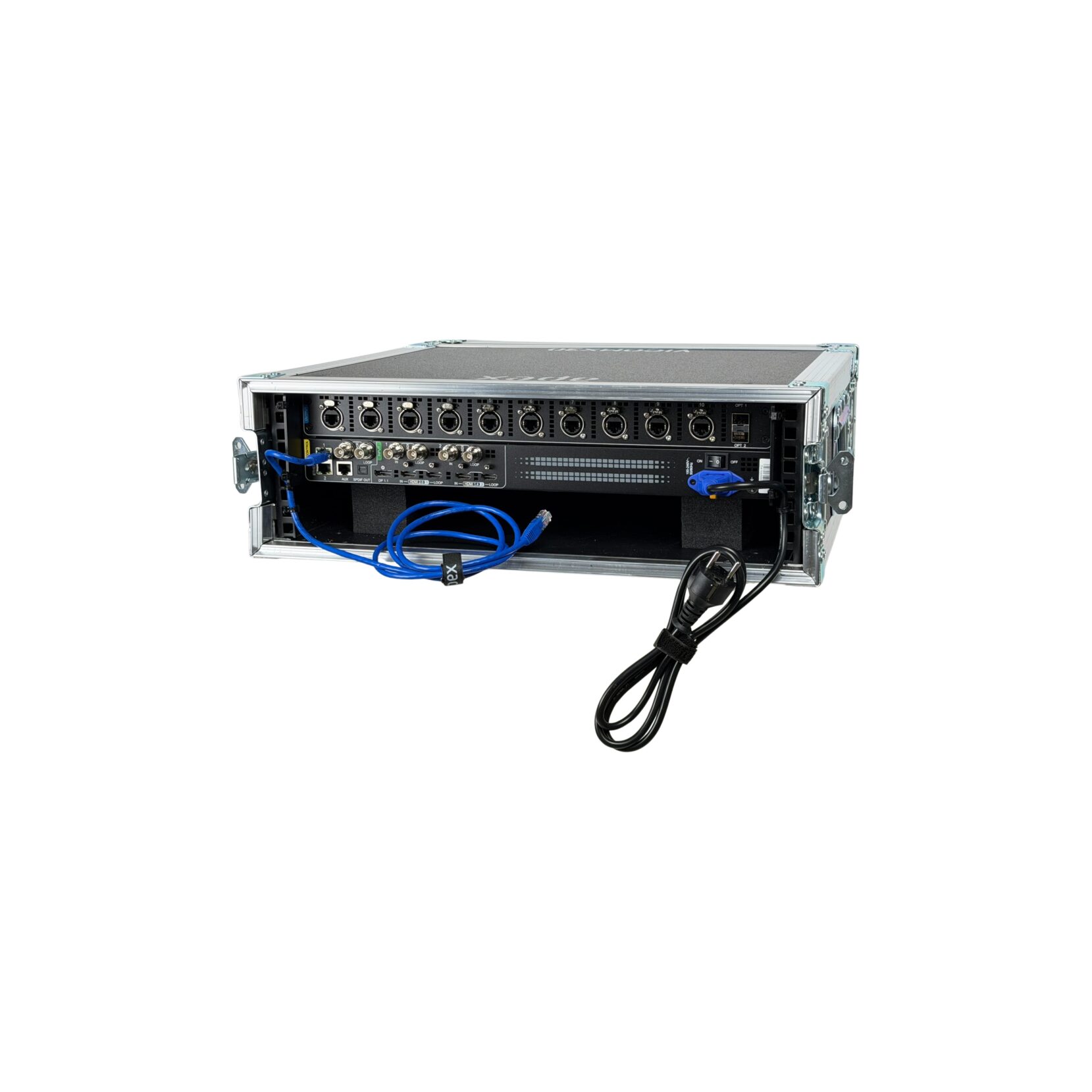

PROCESSOR FOR LED SCREEN NOVASTAR MX-30 4K WITH HDR 10
€100.00
The MX30 is part of the COEX series from NovaStar. This controller integrates video processing and controlling in one device.
In conjunction with the new VMP software (Vision Management Platform) from NovaStar, the user is offered simple operation with extensive functions.
Features
Inputs:
1x HDMI 2.0 (max. 4096×2160@60Hz(forced); min. 800×600@60Hz)Custom EDIDs: max. width: 8192 (8192×1080@60Hz); max. height: 7680 (1080×7680@60Hz)
1x HDMI 1.4 (max. 4096×1080@60Hz(forced); min. 800×600@60Hz)Custom EDIDs: max. width 4096 (4096×1080@60Hz); max. height: 4096 (1080×4096@60Hz)
1x DP1.1 (max. 4096×1080@60Hz (forced), min. 800×600@60Hz)Custom EDID’s: max. width: 4096 (4096×1080@60Hz); max. height: 4096(1080×4096@60Hz);
2x 3G-SDISupports ST-424(3G), ST-292(HD) & ST-259(SD) video inputs
Outputs:
10x LED-Out (RJ45):8Bit@60Hz: 659,000 pixels
10Bit@60Hz: 494,000 pixels (with A10s Pro)
1x HDMI 2.0 loop
1x HDMI 1.4 loop
1x 3G-SDI loop
2x OPT-Out (10G)
1x SPDIF (reserved)
Further features:
GENLOCK
3x layer
14Ch Color Correction
Full Grayscale Calbration
Low latency
Integrated network switch for cascading multiple devices
